| Model | MWQ-ZL55E-12YJ | MWQ-ZL75E-12YJ | |||
|
Main motor power((KW/HP) |
55KW | 75KW | |||
| 主機(jī)切割電機(jī)轉(zhuǎn)數(shù) | 0-750r/min | ||||
|
Driving wheeldiameter(mm) |
800mm | ||||
|
Wire saw length (m) |
20-120 | 20-150 | |||
|
Wire saw diameter (mm) |
11.5 | ||||
|
Line speed (m/s) |
0-40 | 0-50 | |||
|
Walking speed of machine (m/h) |
0-100m/h（Slow：0.36/min; Fast：2.20m/min） | ||||
|
Total power (kw) |
58 | 78 | |||
| Walking moter power (Kw) | 0.75 | ||||
|
Driving head rotation motor power (kw) |
1.1 | 1.5 | |||
|
Driving head walking motor power (kw) |
1.1 | ||||
|
Rot枉ation angle |
360° | ||||
|
Driving head moving range (mm) |
0-550 | 0-600 | |||
|
Length ofguide rail(mm) |
5*2m | ||||
|
Driving motor RPM (r/min) |
0—980r/min | ||||
|
Service temperature(C) |
-15°C，+40°C | ||||
| Power supply | AC380±10﹪ 50Hz | ||||
|
Net weight(T) |
2.4T | 2.5T | |||
|
Machine dimension(mm) |
2000*1300*1500 | 2000*1300*1500 | |||

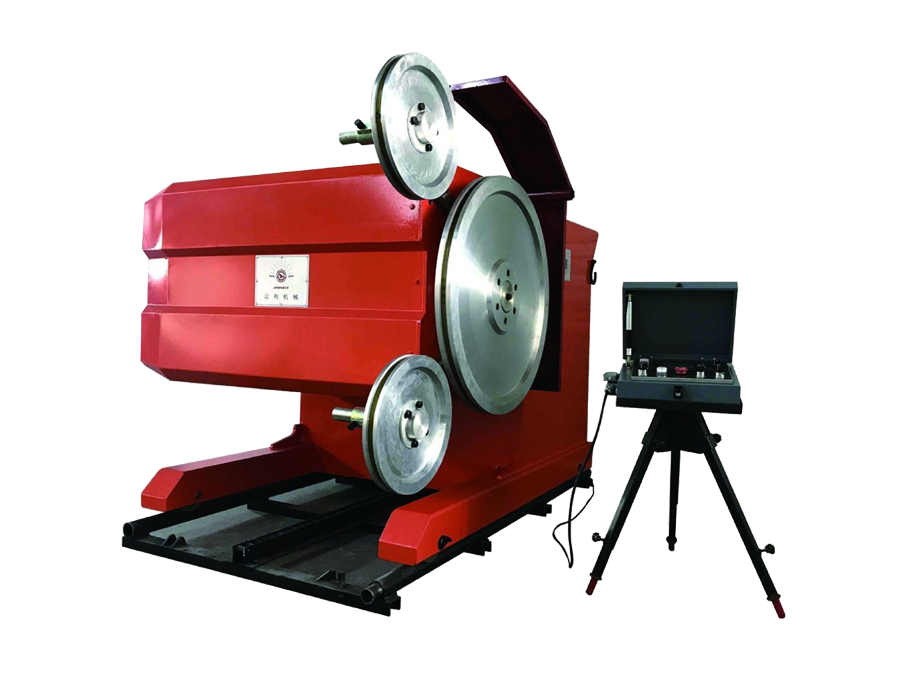

1.Applied advanced design and fabrication technology, the machine issuitable for grantie, marble and sandstone quarry opening.
2.The machine head can be adusted and rotated automatically.lmported vector frequency concerters are equipped in to ensure the con-stant torque output. The feed speed can be adjusted automatically by theconstant tension control system. The adjustment is stable, so the cuttingcondition is always remain the best.
3.The operation panel can be wire control and remote control, the monitorcan show the instant current, feed speed and cutting datas.
